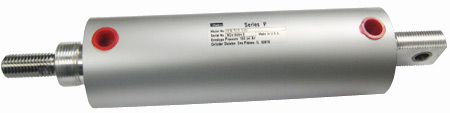

P Series

Round Aluminum Air Cylinders

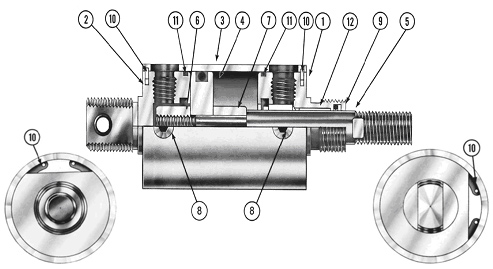

Features

➀➁ Heads and Caps are lightweight aluminum for maximum

corrosion resistance. The cap is provided with a steel

pivot bushing.

➂ Cylinder Body is hard anodized aluminum for corrosion

and abrasion resistance. The smooth I.D. finish provides

long seal life.

➃ The Piston is available with either O-Ring or Lipseal®

design.

➄ Piston Rod is chrome plated steel.* The piston is

secured to the rod with anaerobic adhesive. Full diameter

threads are provided for maximum strength. Wrench flats

are standard.

➅➆ Adjustable Cushions are available on 2" thru 4" bore

sizes, while fixed cushions are available on 11/8" and 11/2"

bore sizes.

➇ The Cushion Adjustment Needle is recessed and

retained for precise, safe adjustment on all adjustable

cushions.

➈ The wear-compensating Rod Seal design conforms

to pressure variations and provides maximum seal life.

➉ High Strength Steel Retaining Snap Ring

(210,000 PSI ultimate) is precision made to securely

lock the head and cap in place. Easily removed for

quick disassembly.

11.O-Ring Static Tube Seal is standard for positive

no-leak sealing.

12.Rod Bearing is low friction bronze for high performance

and longer wear.

and longer wear.

Force Data

Cylinder Cushion Lengths

Standard Specifications

• Nominal Pressure – up to 150 PSI air

• Repairable Design

• Bore Sizes: 11/8”, 11/2”, 2”, 21/2”, 3” and 4”

Double-Acting, Spring-Return and Spring-Extend Models

Fluorocarbon Seals for operation up to 250°F are available at

extra cost.

• Standard Stroke Lengths to 20 inches in one inch increments,

plus 11/2", 21/2" and 31/2" strokes. Fraction strokes and strokes

over 20 inches are available upon request.
